Double FRP Self-Supporting Optical Cable (GYFFY)

AUS

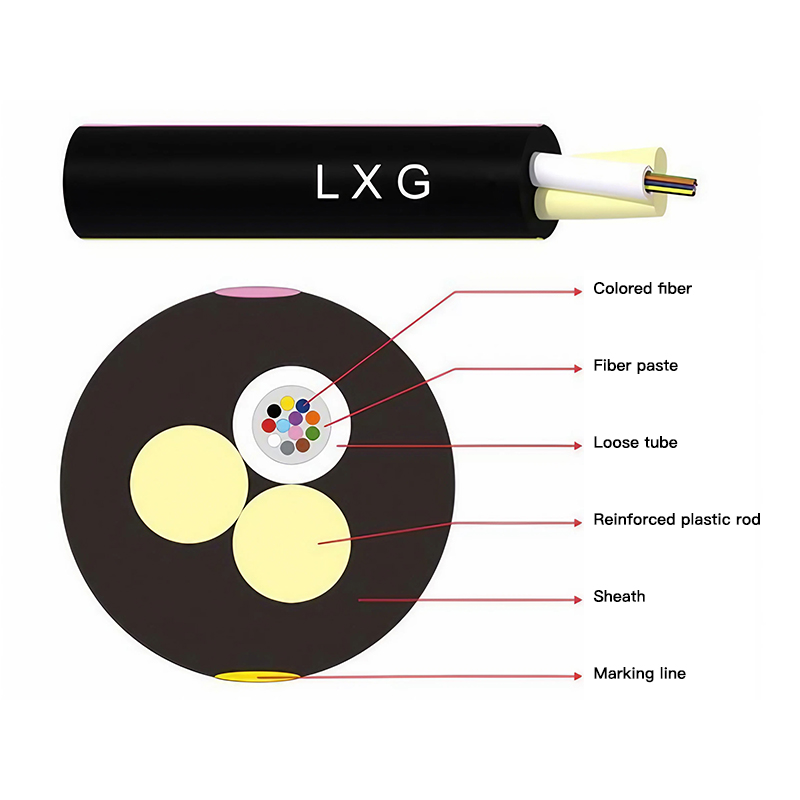

The optical cable structure is to place the 250μm colored optical fiber in a PBT loose tube, with two non-metallic reinforcements as reinforcement and support, and a layer of PE outer sheath extruded on the surface.

Consult

Features Technical Indicators Overall Dimension

The optical cable is small in size and light in weight
Two RRPs as reinforcements provide good tensile properties
Dry or oil-filled, good water-blocking properties
Affordable price, high fiber capacity
Suitable for short-span overhead or underground laying

Optical properties

		G.652	G.655	50/125μm	62.5/125μm
attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
bandwidth (Class A)	@850			2200MHZ-km	2200MHZ-km
bandwidth (Class A)	@1300			≥500MHZ-km	≥500MHZ-km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Optical cable cut-off wavelength		≤1260nm	≤1480nm

Structural parameters

Number of optical cable cores	unit	2 core	4 core	6 core	8 core	10 core	12 core
Number of loose tubes	root	1	1	1	1	1	1
Number of optical fibers	core	2	4	6	9	10	12
Number of optical fibers in loose tube	core	2	4	6	9	10	12
Outer diameter of optical cable	mm	6.6±0.5			6.8±0.5
Weight of optical cable	Kg/km	40±10			45±10
Allowable tensile force	N	Span=80,1.5*P
Allowable crushing force	N	1000N
Operating temperature	C	-20℃ to +65℃
