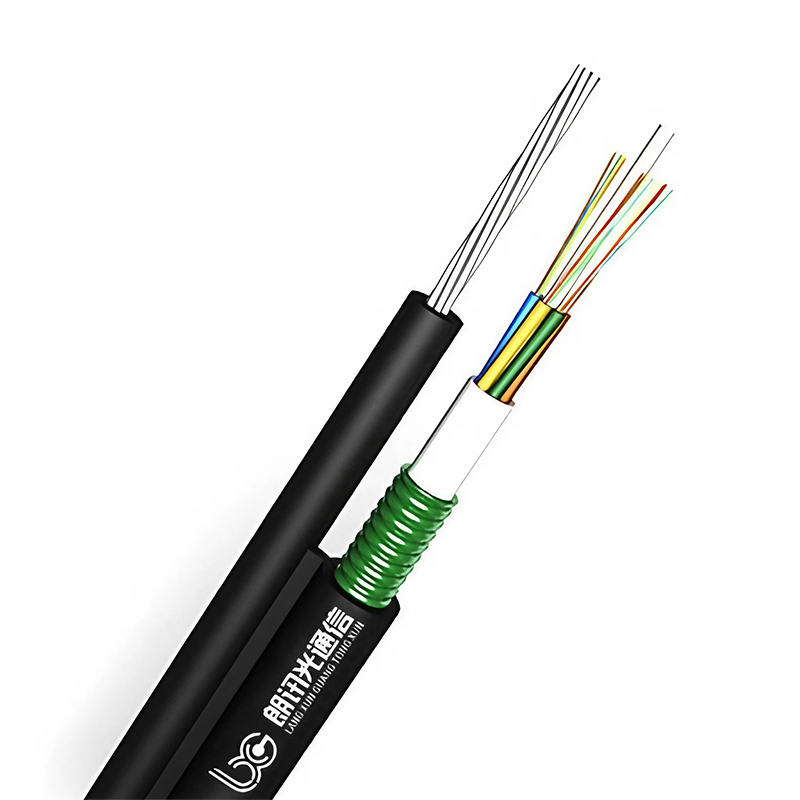

Figure-Eight Double-Sheathed Water-Blocking Armored Optical Cable

GYTC8S-12B1.3

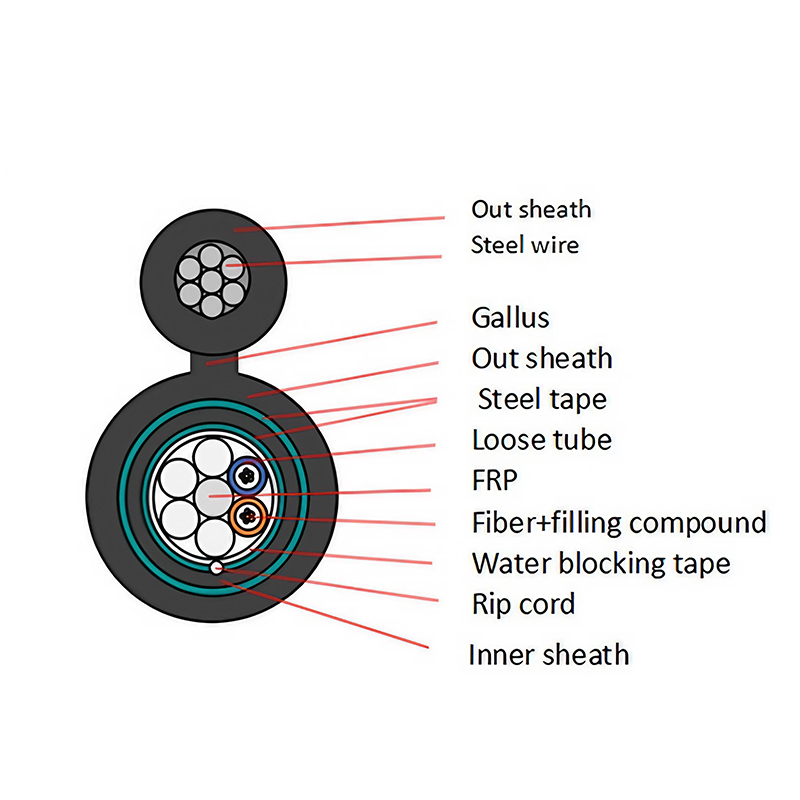

The structure of GYTC8S 53 optical cable is to put single-mode or multi-mode optical fiber into a loose tube made of high modulus plastic filled with waterproof compound. The center of the cable core is a metal reinforcement core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) is extruded outside the non-metallic reinforcement core. The loose tube is twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking compounds. After the plastic-coated steel belt is longitudinally wrapped, a polyethylene inner sheath is extruded, and the double-sided plastic-coated steel belt is longitudinally wrapped and extruded into a polyethylene outer sheath to form a cable. Double sheath and double armor structure, better water blocking effect.
Application: Suitable for trunk power transmission system.
Access network and local area network in places with high electromagnetic interference.
