Outdoor Covered Optical Cable FTTH

GJYXCH/GJYXFCH

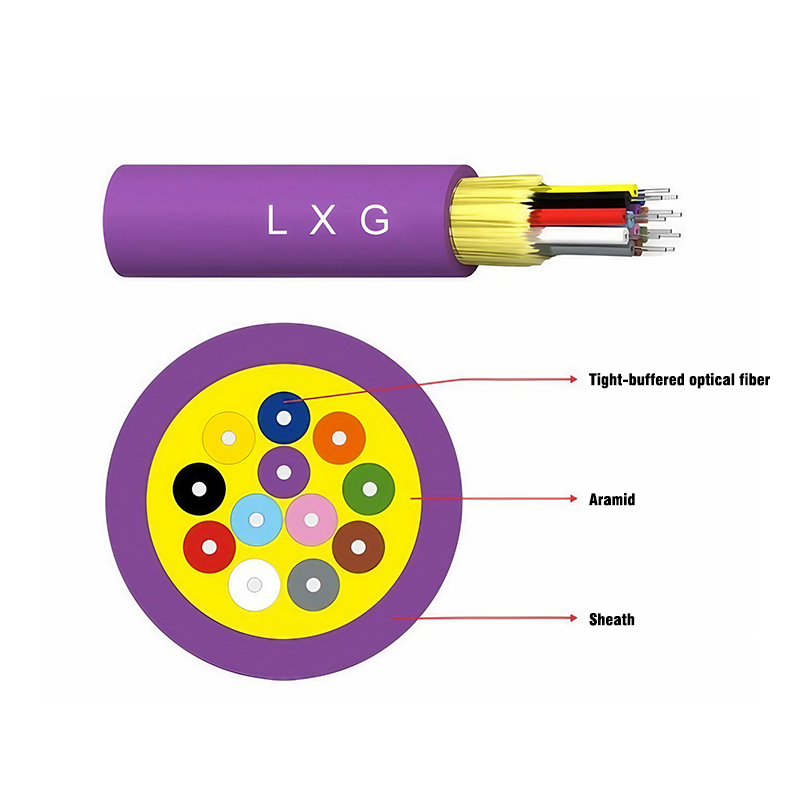

The GJFJV optical cable structure is to evenly apply multiple strands of aramid or high-strength glass yarn on the outside of multiple c900μm or ф600μm tight-buffered optical fibers for reinforcement, and then extrude a PVC (or LSZH) outer sheath.

Consult

Features Technical Indicators Overall Dimension

Small outer diameter, light weight, flame retardant, easy to strip, low attenuation, high flexibility. Tight-buffered optical fiber cables can be directly connected without transition joint boxes and pigtails, and no need to clean waterproof grease, so the laying cost is low.
Product Application
This optical cable is suitable for indoor wiring.
Suitable for pigtail jumpers and jumpers
Suitable for optical connection of communication equipment and optical instruments
Suitable for floor connection and easy maintenance

Optical cable model

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable diameter (mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable weight (kg/km)	12	20	24	29	32	35
Tight-buffered opticalhber diameter	900±50μm

Mechanical properties

Allowable tensile force	long-term	80N	60	50
Allowable tensile force	short-term	150N	120	100
Allowable crushing force	long-term	100N/100mm	100N/100mm	100N/100mm
Allowable crushing force	short-term	500N/100mm	500N/100mm	500N/100mm
Bending radius	dynamic	20XD	20XD	20XD
Bending radius	static	10XD	10XD	10XD

Optical properties

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.22dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth(ClassA)	@850			≥2500MHZ·km	≥200MHZ·km
Bandwidth(ClassA)	@1300			≥21000MHZ-·km	≥2600MHZ·km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-offwavelength		≤1260nm	≤1480nm

Environmental characteristics

Transport temperature	-20℃~+60℃
Storage temperature	-20℃~+60℃
installation temperature	-5℃~+60℃
Use temperature	-20℃~+60℃
